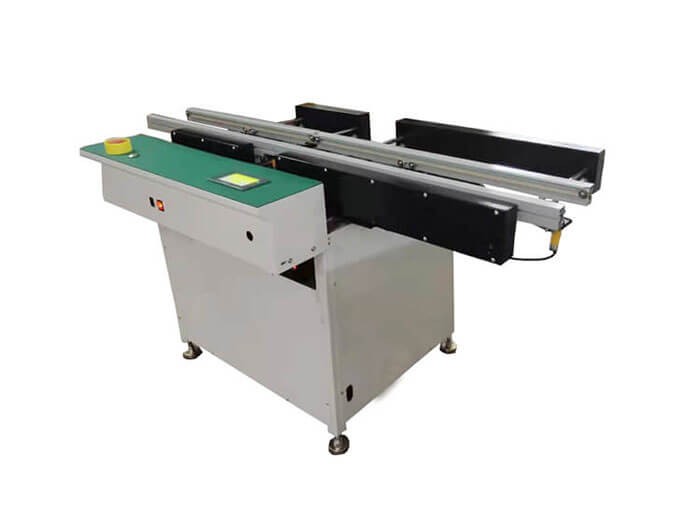

SMT Retractable Conveyor

Expansion Size 580mm
PCB Width: 50 to 350 mm
Outline dimensions 1500*750*900mm
Weight 150KG

SMT Retractable Conveyor

Specifications:


1.The width adjustment of standard precision screw rods easy adjustment width

2.Professional wear-resistant anti-static flat belt and dedicated aluminum profile guide rail are used to ensure smooth connection and stable transportation;

3.The standard equipped signal cable(SMEMA) can be connected online with other equipment

4.Retractable Conveyor with different rail lengths can be customized according to customer requirements

5.The work surface is equipped with anti-static rubber to better prevent static electricity;

6.The transmission motor uses two 42 * 48 stepper motors

Model

 SMT Retractable Conveyor

Outline dimensions

1500*750*900mm

PCB width

50-350mm

Transport height

900±20mm

PCB transport direction

L-R(R-L)

PCB transport Speed

0~3000mm

Expansion Size

580mm

Expansion Control

PLC Control

Motor

Stepper motor

Expansion method

Two key conrol

Power supply

AC220V1P 50/60Hz

Power consumption

Approx.100W

Track length

580mm

Control mode

PLC+touch screen

Weight

150KG

SMEMA

Dual line wire

Single lane

1 fixed2nd moving
