Inline DIP Touch UP Machine R820

Max PCB 400mm * 300mm
Dimension 820 x 1100 x 1600mm
Weight 300KG

Inline DIP Touch UP Machine R820

Specifications:

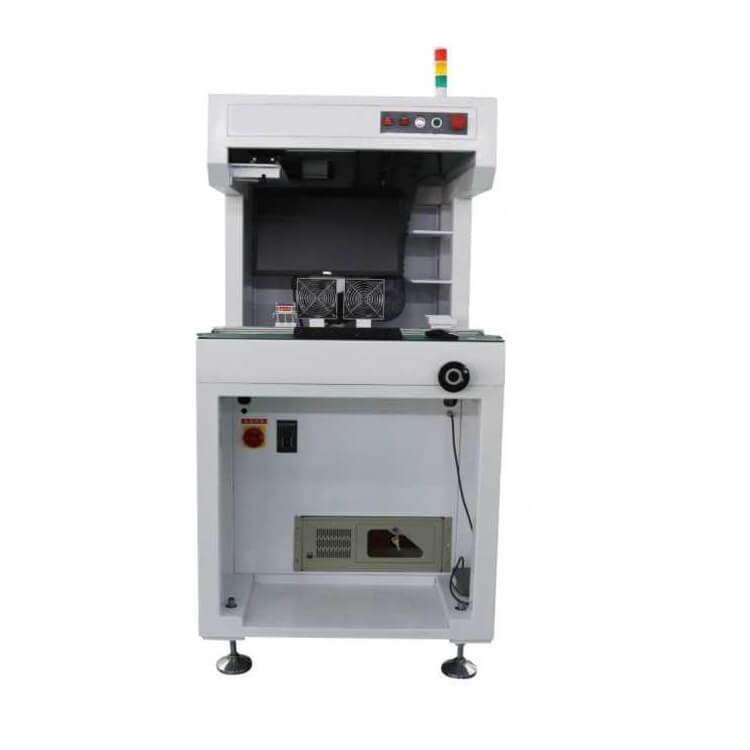

inline touch up machine.jpg

♦Through the equipment interconnection, the touch-up station received the defective location data from AOI, and pointing the rework position accordingly:

♦Intelligent identification of bad points, without manual search, greatly reduce the intensity of human work, saving m 70% of the labor costs;

♦Eliminate artificial visual errors, greatly improve the quality of products;

♦Comprehensive and detailed SPC analysis system, greatly promoted the improvement of the former process technology;

♦Change the traditional mode of operation, greatly enhance the production efficiency.

Model

In-line intelligent touch-up station R820


Power Supply

AC220V±10%50/60HZ 1KW

Dimension

820 x 1100 x 1600mm


Weight

300KG


Conveyor Height

900 ± 20mm

PCB size

Min

50mm x 50mm

Max

400mm * 300mm

 PCB Thickness

w6mm

Hardware Spec

PCB  Max Weight

3KG


PCB Holding Edge

3.5mm

Conveyor Speed

750mm/S(MAX)

Conveyor Control

Manual/Automatic

Operating system

Windows10

User Interface

Chinese/English

Software SPEC

Monitor

21.5

Other

Solder Capability

Support for generic component libraries and CAD data import

Programming

CAD


Features

The machine does not need to solder the solder joint (can also be independent).only need to AOI check machine to send the bad solder joint coordinates corrected.Can be accurate logo;

CAD data import function, stand-alone use of fast programming;
