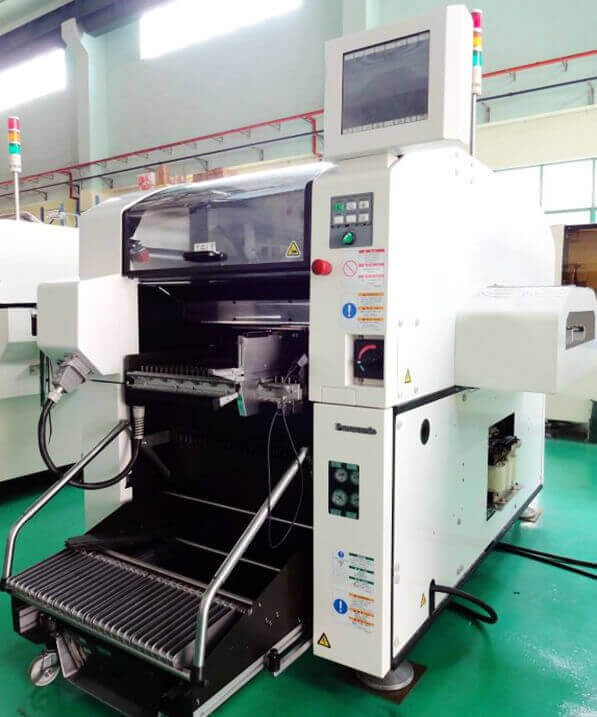

Panasonic DT401-F Pick and Place Machine

Panasonic DT401-F Pick and Place Machine
Component Size: 1005 Chip
W1260 mm x D2512mm x H1430mm
Weight: 1400KG 1560KG

Panasonic DT401-F Pick and Place Machine

Specifications:


Panasonic multi - function placement machine DT401
Model Name: DT401-M DT401-F
Model: KXF-E53C KXF-E64C
Base size: L50mm x W50mm to L330mm x W250mm L50mm x W50mm to L510mm x W460mm
Placement tempo: 0.7s / chip (tape, bulk) 0.8s / QFP (single tray) 1.2s / QFP
Mounting accuracy: + - 50um / chip cpk> 1, + -35um / QFP () Cpk> 1
Component Size: 1005 Chip - L100mm x W90mm x T25mm
Change time: 2.0s 0.9s (substrate length 240mm x or less)
Power: three-phase AC200-400v, 1.7kVA
Air source: 0.49MPa, 150L / m (A.N.R)
Equipment dimensions: W1260 mm x D2512mm x H1430mm W1260 mm x D2722mm x H1430 mm
Weight: 1400KG 1560KG
Panasonic DT401-MF

Model

DT401 pick and place machine

Model No.

KXF-E64C

Board size

L50 x W50 mm to L510 x W460mm

Speed

Chip

0.7S/Chip

QFP

0.8S/QFP

Placement accuracy(Cpk≥1)

Chip

±0.050mm

QFP

±0.035mm

NO. of component inputs

tape

MAX. 54*2

tray

MAX.20(Single tray), MAX. 40(twin tray)

Component size

1005 - L100mm x W90mm x T25mm

Machine dimensions

W1260 x D2512 x H1430 mm

weight

approx. 1400kg

Keywords:

Panasonic NPM-TT2 Pick and place machinePanasonic NPM-D3 pick and place machinePanasonic NPM-W2 pick and place machinePanasonic NPM WX Pick and place machinePanasonic pick and palce machinePanasonic InserterPanasonic PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare partsPanasonic AI Spare parts.

We provide Panasonic SMT assembly line solutions, including Panasonic Assembly Line Equipments Panasonic productsPanasonic Pick and Place Machine MachinePanasonic Insertion machinePanasonic SMT Stencil PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare PartsPanasonic AI Spare Parts;  any kind through hole Insertion equipments you may need, please contact us for more information: wechat whatsapp:+8613538047679, Email: Andy@fomyn.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/ skype/ phone/ wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
