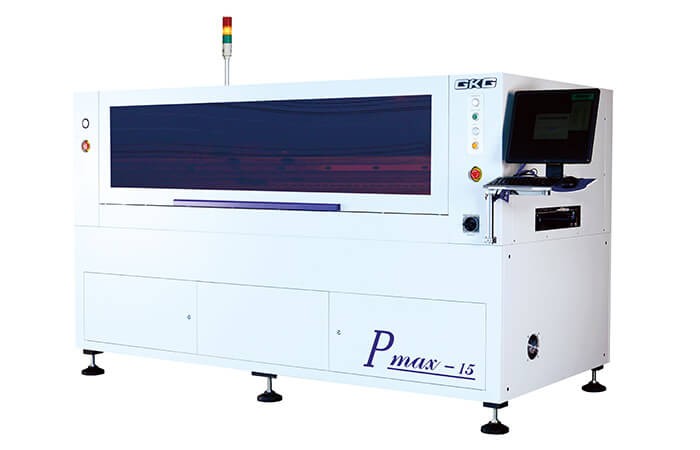

GKG Stencil Printer PMAX 15
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：80mm x 50mm ~1500mm x 350mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.
GKG Stencil Printer PMAX 15
Repeat Position Accuracy
±0.01mm(Test data and method are available)
±0.025mm(Test data and method are available)
Printing Speed / Cycle Time
<10s (Exclude Printing & Cleaning)
Screen Stencil Size/Min-Max
720mm X300mm-1800mm X750mm
Screen Stencil Size/Thickness
20mm ~ 40mm
PCB Warpage Ratio
＜1%（Based on diagonal length）
Bottom of Board Size
15mm（Standard configuration）, 25mm
Edge of Board Size
Left-Right; Right-Left; Left-Left; Right-Right
100-1500mm/sec Programmable control
Magnetic pin/Side support block/Flexible automatic pin（optional）
Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting
Two indepandent Motorised printheads
0-10kg software control（closed-loop pressure feedback）, pressure value visible
Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.
Steel Mesh Separation Speed
0.1~20mm/sec Programmable Control
Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods）
Table Adjustment Range
Type of Fiducial Point
Standard geometry shape of fiducial point, bonding pad / Stencil hole
Single digital camera for upward/downward vision system
Approx 0.07m3 /min
AC:220±10%,50/60HZ 1Φ 1.5KW
Depends on exactly model
-20°C ~ +45°C
