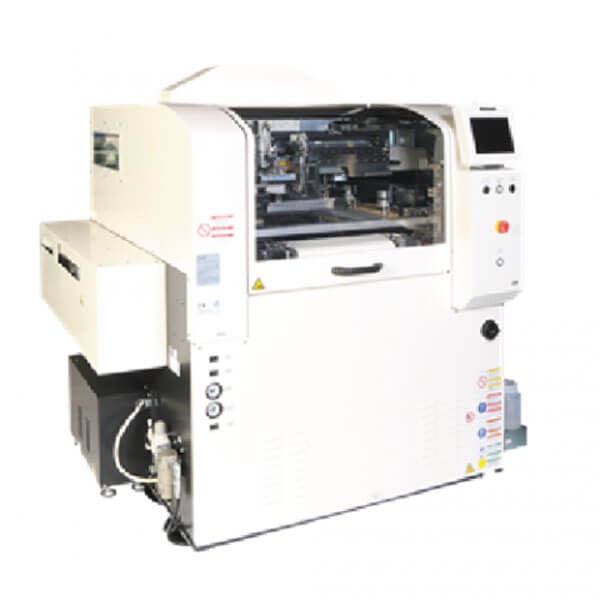

Panasonic stencil printer SPV NM-EJP7A NM-EJP8A

PCB dimensions: L 350 x W 300 MM
Dimensions: 1650 x 1517 x 1500MM
Weight: 1550 kg
Model No.: NM-EJP7A NM-EJP8A

Panasonic stencil printer SPV NM-EJP7A NM-EJP8A

Specifications:


Panasonic stencil printer SPV Features:

Realizing high-speed printing (10sec/PCB) and stable quality

Realizing the high-speed printing, eliminating a screen printer becomes bottleneck of operation and the stable quality by each-time cleaning.

<Realizing cycle time 10sec/PCB>

• New development : Self-propelled cleaning unit

• 3 Conveyors

• Hybrid squeegee head

PCB discrimination function

To establish a printing process according to your production style.

• Single Spec

• 1 to 2 Spec

• 2 in 1 Spec

• Dual Spec

M2M Line solution

According to the correction data of shifted printing positions analyzed by solder paste inspection (APC correction data) , it corrects printing positions (X ,Y ,θ) .

*3D inspection equipment of other companies can also be connected.

Connect with upper system (LNB,LWS…)

• Automatic changeover

• Component verification (solder/mask/squeegee…)

• Trace data output

*About the specification and system configuration, please refer to the “Specification" for details.


Model ID

SPV
(Single Spec)

SPV
(1 to 2 Spec)

SPV
(2 in 1 Spec)

SPV
(Dual Spec)

Model No.

NM-EJP7A

NM-EJP7A
(Main machine)
NM-EJP8A
(Back side machine)

PCB dimensions (mm)

L 50 x W 50 to L 350 x W 300
(Max. dimensions of 1 to 2 Spec : L 350 x W 165)

PCB exchange time

10.0 s Including transfer, positioning, recognition, each-time cleaning.
Printing & cleaning conditions : Our recommended conditions (PCB dimensions L 250 x W 165 ) * Except 1 to 2 Spec

Repeatability

2 Cpk ± 5.0 μm 6 σ The repeatability of same PCB
Equal to ± 5.0 μm ± 3 σ (or ±2.5 μm ±1.5 σ)

Screen frame dimensions (mm)

L 736 x W 736, L 650 x W 550, L 550 x W 650, L 750 x W 750, L 584 x W 584

PCB discrimination function

Pre-process

Not

Not

Installed

Not

Post-process

Not

Installed

Installed

Installed

Electric source

1-phase AC 200, 220, 230, 240 V ±10V
Max. 2.0 kVA

1-phase AC 200, 220, 230, 240 V ±10V
Max. 4.0 kVA

Pneumatic source

0.5 MPa

0.5 MPa

Mask cleaning suction :
blower spec

280 L/min (A.N.R.)

560 L/min (A.N.R.)

Mask cleaning suction :
ejector spec

380 L/min (A.N.R.)

760 L/min (A.N.R.)

Dimensions (mm)

W 1 650 x D 1 517 x H 1 500

W 1 650 x D 3 044 x H 1 500

Mass*6

1 550 kg

1 550 kg (Main) +
1 450 kg (Back side)

*1 : PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth.
*2 : For mask specifications, please see the specification.
*3 : Including blower and vacuum pump"Option"
*4 : When using the mask suction function
*5 : Except for the signal tower and the touch panel.
*6 : With full options
*Values such as cycle time and accuracy may vary depending on operating conditions.
*Please refer to the ‘‘Specification” booklet for details.
