Simple DIP Assembly Line

Specifications:

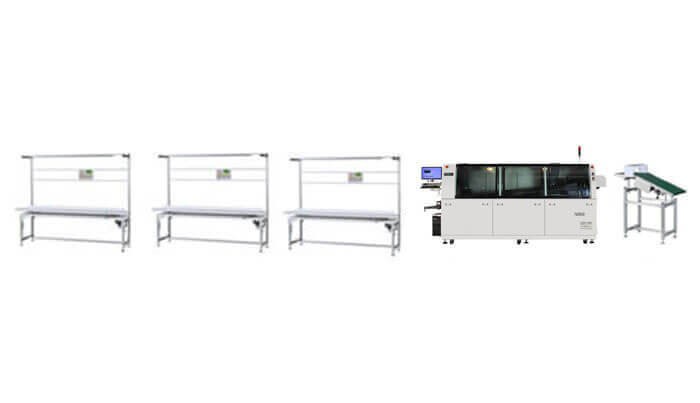

Simple DIP production line is using 3-5 DIP inserter lines and 1 big 4.1 meter wave soldering machine, 1 PCB conveyor for PCB quality inspection or assembly. High capacity output. one this high capacity DIP production line capacity is around 3000pcs (10 hour working time) 20x20cm PCB. more big capacity, you can use 2 or 3 or 5 this production lines to got even higher production capacity.

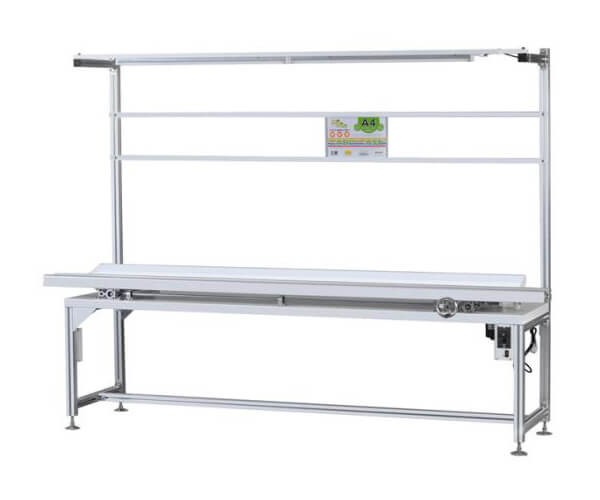

1. 2.4 Meter DIP insert line

1. Working place arranged at one side beside the conveyor.

2. Motor running ,Chain moving .

3. Our normal length is 2.4M ,one working place per 1 meter,totally 3 working places

4. Line width is about 600mm ,total height about 1800mm ,working height 740mm.

5. Materials :aluminum .

6. Suitable PCB width 35-300mm width can adjustable.

7. fix 40 W fluorescent tube per working place ,totally 3 tubes.

8. each working place install component box fixtures /boards .

9. Moving method ; Driven by motor ,PLC control ,speed 0.3-3m/min adjustable.

10. Total Power : 60W AC220V/1phase/50HZ60w

11. By connected the line to wave soldering machine with conveyer, it will automatically go to the next step for soldering.

12. Speed: 0.2-2m/min

13. Dimension:240x60x180CM

14. Weight:Approx.80Kg

2. Wave Soldering Machine N350

Wave sodlering machine is used for soldering THT insertion components to PCB. It's automatic soldering, so reduced the human working cost. Nowsdays still widely used in PCB production feild.

1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

2.Automatic power system, frequency converter control, automatic board input system.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,

easy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records, improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

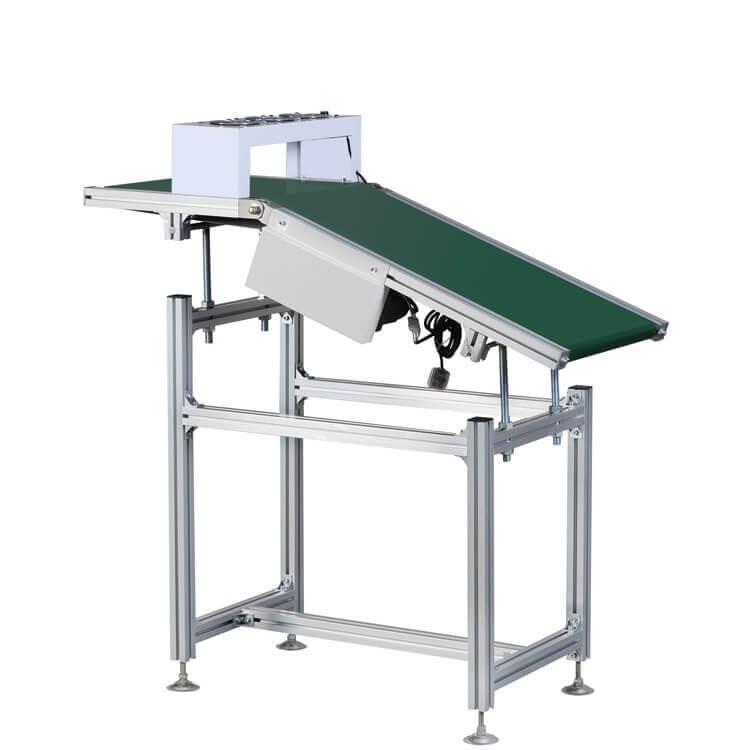

3. THT PCB out feed conveyor

1.It is used to unload PCB’s or pallets from wave soldering machine at 6-7°.

2.Transmission speed, transfer height and track angle can be adjusted.

3.Cooling fan can be installed so that it can protect the PCBs or the component.

4.Special belt and track, transmission smooth, and work stable and reliable.
