Panasonic NPM-D3A SMT Assembly Line

Panasonic NPM-D3A SMT Assembly Line
Full Automatic production line
Speed: 200000CPH
Usage: PCB production

Panasonic NPM-D3A SMT Assembly Line

Specifications:

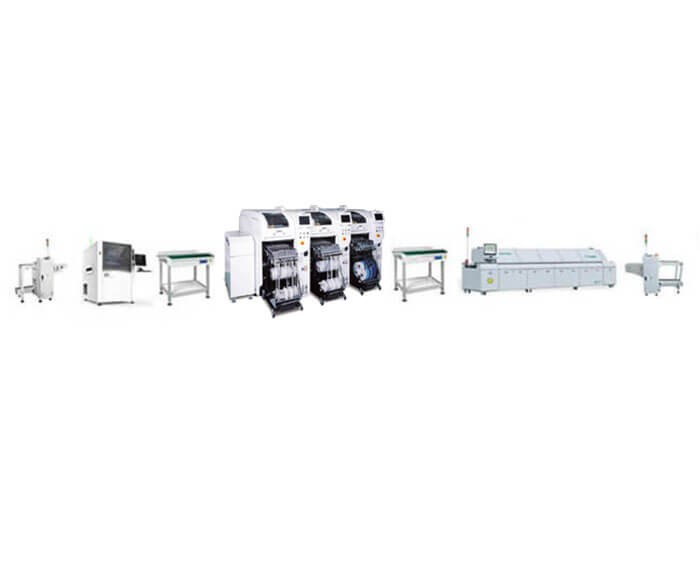

Panasonic NPM-D3A SMT production Line, this full automatic SMT assembly line with 3 set NPM-D3A pick and place machine, suitable for High output PCB production, like consumer proudcts PCB, TV PCB and other middle size PCB with daily output 20000pcs.

1. PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

2. Automatic smt stencil printer G5

G5 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.

Specification:

GKG Series High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size:50mm x 50mm ~400mm x 340mm;

PCB thickness: 0.4mm ~ 14mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,

min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,

medical power equipment, aerospace and aviation, besides general electronics products.

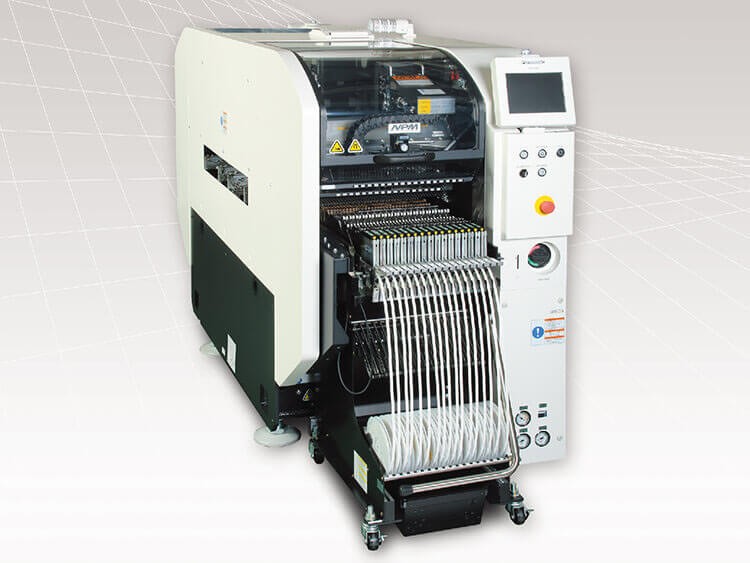

3. Panasonic NPM-D3A Pick and place machine

Adoption of the light-weight 16-nozzle head V3
Improving Placement tact time by simultaneously driving X-/Y-axes and selecting optimal pathways during component recognition operation.
Advancement of head drive unit motion control
Improving placement tact time by further advancing motion control and thereby reducing X-/Z-axis travel time.
Use of new pickup operation algorithm
Improving effective productivity by enhancing pickup algorithm for microchips.

4. high production Capacity Reflow oven KTR 1000

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

5. PCB Unloader

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box
