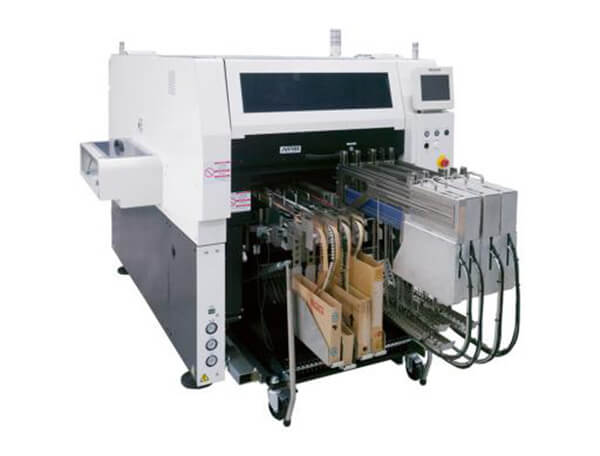

Panasonic Odd-Form Component Inserter NPM-VF

Max PCB: L 510 x W 460mm
Max. component weight : 200g
Dimension: W 1,866 x D 2,332 x H 1,554
Machine weight: 2,590 kg

Panasonic Odd-Form Component Inserter NPM-VF

Specifications:



NPM-VF Odd-Form Component Insertion Machine NM-EJR9A

PRODUCT DETAILS

Panasonic designed the NPM-VF odd-form solution to address increasing global labor costs and manual assembly complexity. The new platform, built from the award-winning NPM Platform, introduces several innovative solutions to reduce labor requirements and cost, while boosting productivity, enhancing versatility, and helping ensure quality through-hole and odd-form component insertions.

Odd-form automation requires more than placement, so the NPM-VF integrates an active, under-board clinch, which traverses the population area. Adopted from Panasonic’s pioneering through-hole technology, the active clinch system can secure various through-hole lead diameters at multiple rotations. Yet, when not required, the clinch doubles as localized board support for snap-in/press-fit components. Panasonic is simplifying odd-form and manual assembly with a solution that helps reduce labor costs, improve quality, and minimize resource challenges.

KEY FEATURES

Body Chuck for gripping large odd-form devices without a pick surface (e.g. power transformers)

Lead Chuck for gripping radial lead through-hole devices (e.g. electrolytic capacitors)

Swing Nozzle for inserting through-hole devices oriented in packaging different than insertion orientation

Reduces labor costs, simplifies complex assembly, and increases production quality

Adapts through-hole technologies like active clinching, lead cutting, and part feeding from Panasonic’s 50+ years of through-hole innovation

Model ID

NPM-VF

Model No.

NM-EJR9A: Standard Conveyor

PCB Dimensions (mm)

L 50 x W 50 ~ L 510 x W 460

PCB Dimensions (mm)

Standard Conveyor: L 50 x W 50 ~ L 510 x W 460
Anvil Conveyor (Option): L 50 x W 50 ~ L 460 x W 400

Max. PCB Mass *

Standard Conveyor & Anvil Conveyor: Up to 3kg [*1]

PCB Thickness

Standard Conveyor & Anvil Conveyor: 0.3 ~ 8 mm

PCB Flow

Standard Conveyor & Anvil Conveyor:
Left ← Right / Left → Right (Flow direction is selectable)

Insertion Direction

Standard Conveyor & Anvil Conveyor: 360º (± 180º )  *1 degree unit

Insertion Push Force

Standard Conveyor & Anvil Conveyor: Up to 100 N

PCB Exchange Time

Standard Conveyor: 4.5 s
Anvil Conveyor (Option): 5.5 s

Applicable Components

Standard Conveyor & Anvil Conveyor:
Max. dimensions : L 130 mm × W 35 mm × H 60 mm • L 150 mm × W 38 mm × H 29 mm
Max. component mass : 200g

Electric Source

3-phase AC 200, 220, 380, 400, 420, 480 V  2.7 kVA

Pneumatic Source

0.5 ~ 0.8 MPa, 200 L /min (A.N.R.)

Dimensions (mm)

W 1,866 x D 2,332 x H 1,554 (Main body only)
W 2,166 x D 2,332 x H 1,554 (When downstream extension conveyor is connected)
Note: Excluding the monitor, signal tower and ceiling fan cover.

Mass

2,590 kg (Only for main body : This differs depending on the option configuration)

*Values such as maximum speed may vary depending on operating conditions.

*Please refer to the ‘‘Specification’’ booklet for details.

[*1]: PCB mass after insertion (including carrier mass)
