Panasonic NPM-W2S Dual lane SMT production Line

Panasonic NPM-W2S Dual lane SMT production Line
Full Automatic production line
Speed: 75000CPH
Usage: PCB production

Panasonic NPM-W2S Dual lane SMT production Line

Specifications:

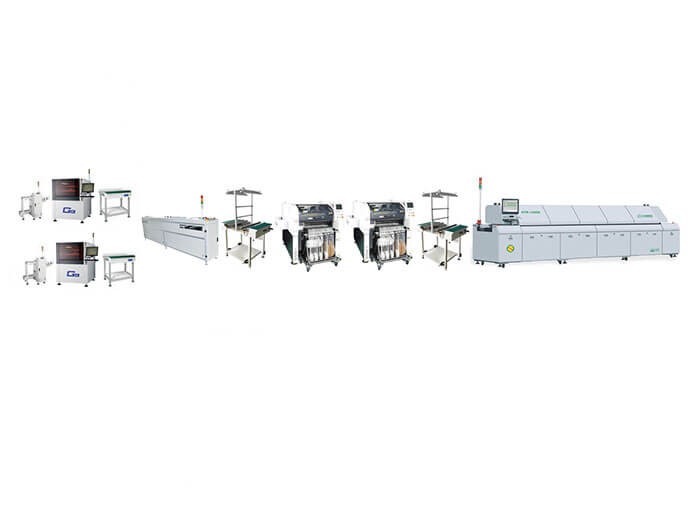

Panasonic NPM-W2S Dual lane SMT production Line, This Assembly line has two transportation lane, each of which can produce PCB, which greatly improves production efficiency

1. PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

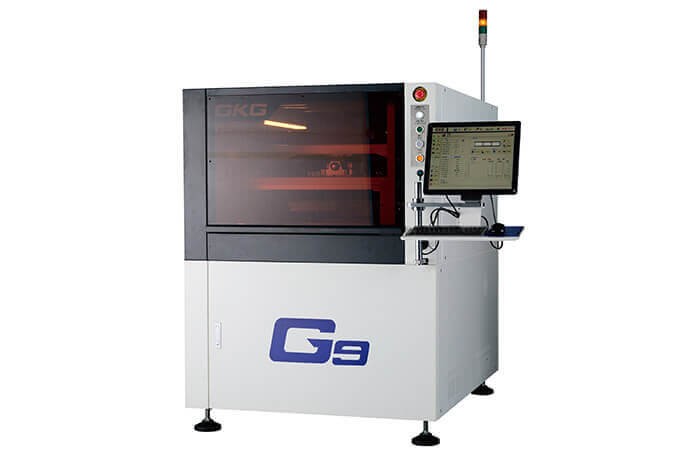

2. Automatic smt stencil printer G9

GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~450mm x340mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

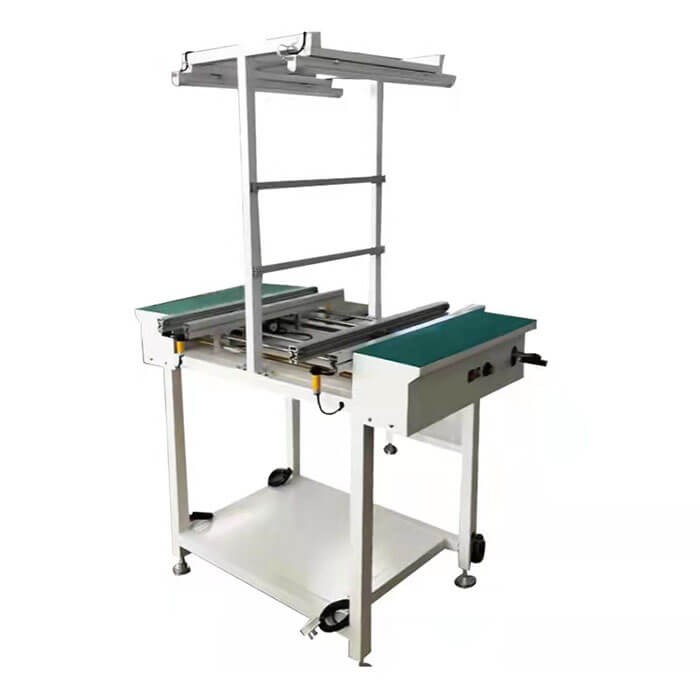

3. PCB Inspection Conveyor

1.Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.

2.Imported circular special belt and patent tracks, can solve thin card guide PCB problem, improve fluency of connection.

3.Standard signal of industry for equipments, SMEMA can connect with others automatically on line.

4.Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.

5.Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.

6.When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.

7. Increasing weight at the bottom to make machine uneasy to be moved, make connection more smoothly.

4. PCB Translation Shuttle Conveyor

1.PLC+LED touch screen control, easy to operate.

2.Full closed design ensures safety level of operation.

3.The cover can be opened to facilitate machine maintenance.

4.Smooth and precise width adjustment (leadscrew).

5.Smooth and accurate movement (stepping motor).

6.Minimize the transmission gap between conveyors.

7.With SMEMA signal.

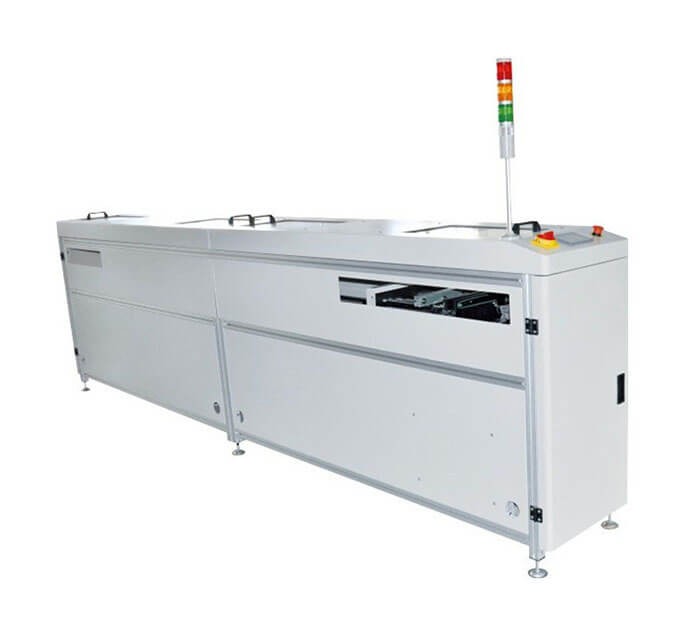

5. PCB Dual Lane Inspection Conveyor

1. The precision screw rod is adjusted in width and narrow to ensure that the transportation rails are parallel to each other;

2. Using professional wear-resistant and anti-static flat belts, special thick aluminum profile guide rails, to ensure smooth connection of guide rails and stable transportation;

3. The standard is equipped with a signal line, which can be connected to the transmission board online with other equipment

4. The conveyor with different lane lengths can be made according to customer requirements

5. Equipped with anti-static rubber to better prevent static electricity;

6. The transmission motor adopts an adjustable 4248 lengthened stepping motor,

7. The flat belt transmission wheel is driven by double bearings, which is stable in transmission and does not damage the belt.

8. Adjusting the width adopts double sets of screw rods,

9. Dual lane independent control, easy to operate,

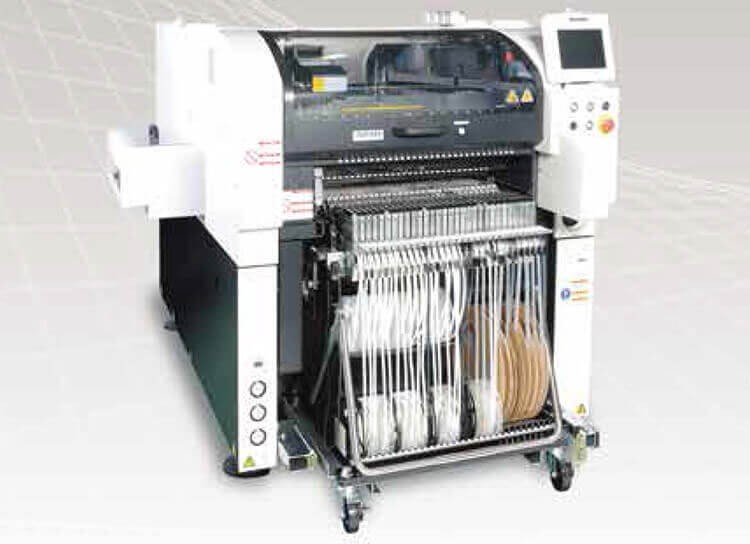

6. Panasonic NPM-W2S Pick and place machine

Support for single-/dual-lane transport
Selection of the mounting head according to production form
Selectable from Lightweight16-/12-/Lightweight8-/3-nozzle head V2
Mutual compatibility with NPM series
Shared use of the placement head/nozzle, tape feeder and feeder cart

Adoption of 3-nozzle head V2
Capable of a max placement load of 100N.

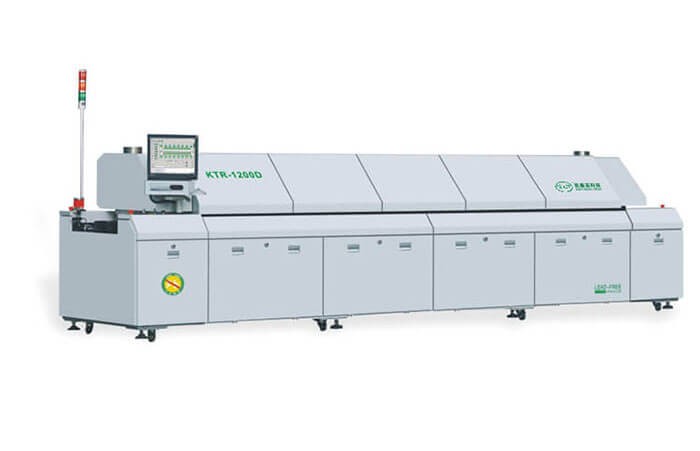

7. SMT Reflow Oven 12 zones Dual Lane KTR-1200D

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.
