Specifications:

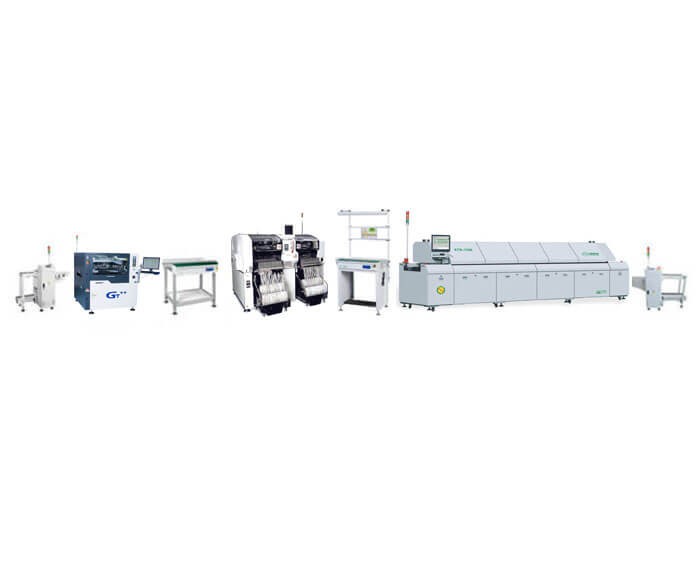

Panasonic CM602 PCB Asesembly line, this full automatic SMT assembly line with CM602 pick and place machine, suitable for High output PCB production, like consumer proudcts PCB, TV PCB and other middle size PCB with daily output 5000pcs.

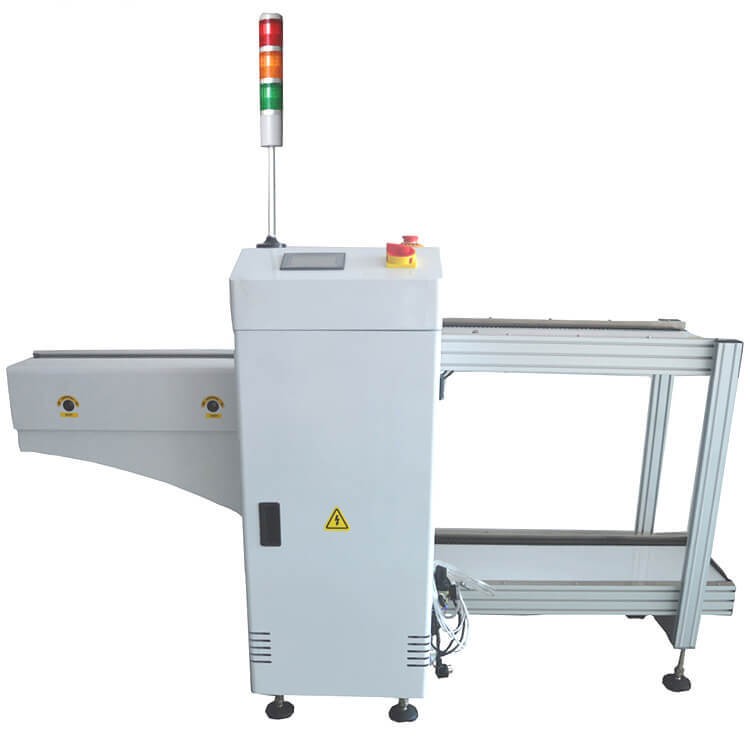

1. PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

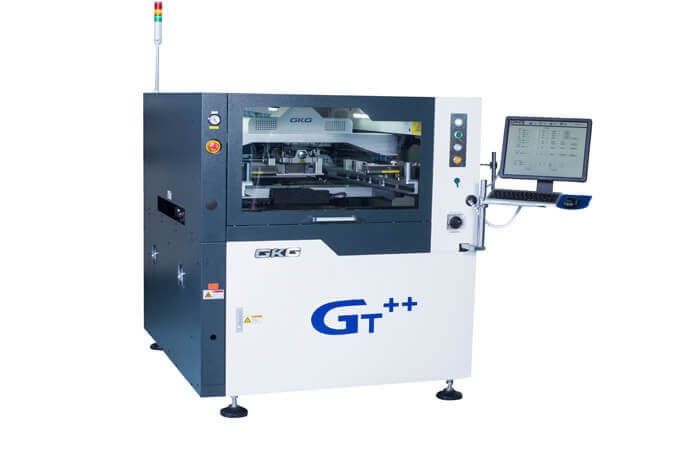

2. GKG Stencil Printer GT++

GT++ is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.

GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~510mm x 510mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

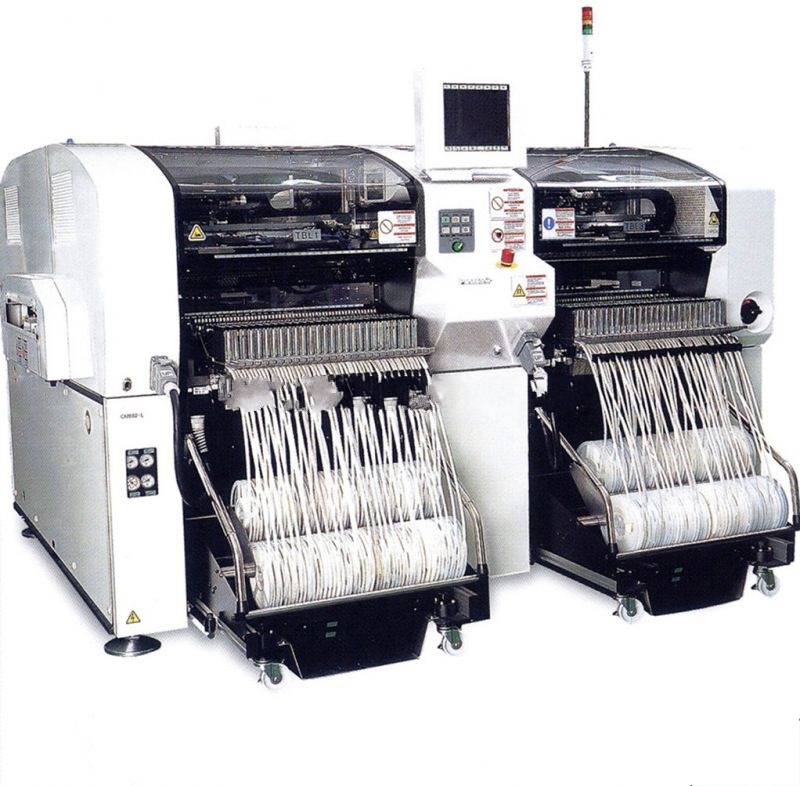

3. Panasonic CM602 Pick and Place Machine

Panasonic CM602 PCB Placement Machine|Panasonic Machine

Features & Benefits:
One platform solution for any kind of production
Commonality with existing equipment
Linear motor drive increases reliability and reduces maintenance
Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards

Panasonic's CM602 high speed multi-functional placement machine lets you achieve world-class throughput via the light head, high-speed recognition camera and linear motor. Fully compatible with our successful CM series feeder units, nozzles and operation, this single platform solution can place up to 100,000 components per hour by selecting the best-suited combination of high-speed and multi-functional heads. Fast, flexible and intelligent - the CM602 takes your productivity to new heights.

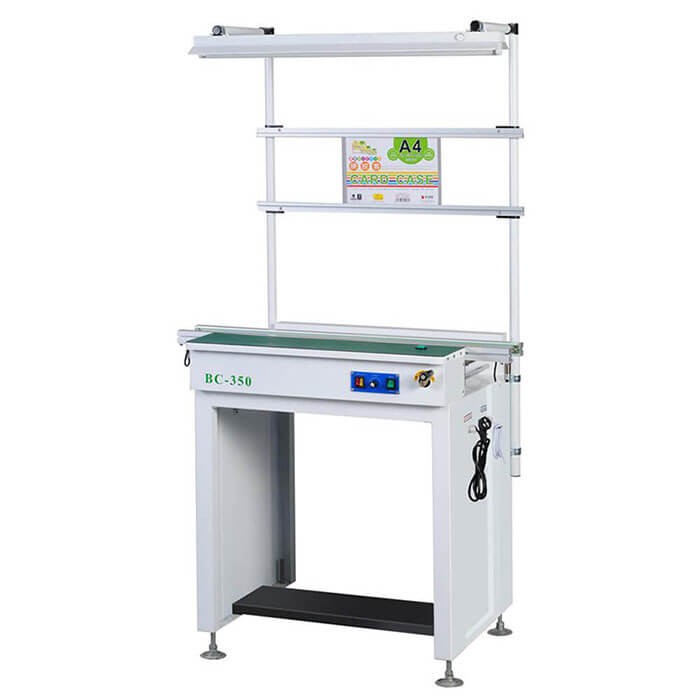

4. PCB Inspection Conveyor

1.Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.

2.Imported circular special belt and patent tracks, can solve thin card guide PCB problem, improve fluency of connection.

3.Standard signal of industry for equipments, SMEMA can connect with others automatically on line.

4.Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.

5.Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.

6.When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.

7. Increasing weight at the bottom to make machine uneasy to be moved, make connection more smoothly.

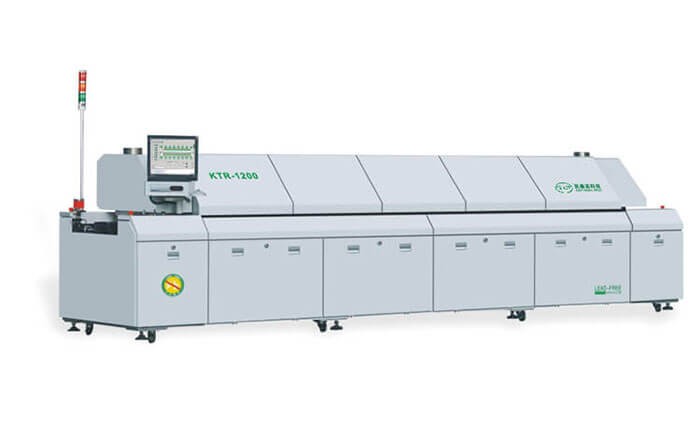

5. 12 heating zones Reflow oven KTR-1200

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

6. PCB unloader

PLC control system

LED TFT touch screen control panel

Four step pitches selection(10,20,30,40mm)

2 magazines loading capability

Stuck and error protection structure

Direction from left to right or right to left(option)

Standard SMEMA
