Panasonic AV131 Insertion Production Line

High Speed Insertion Line
Full Automatic Production
Automatic Touch UP

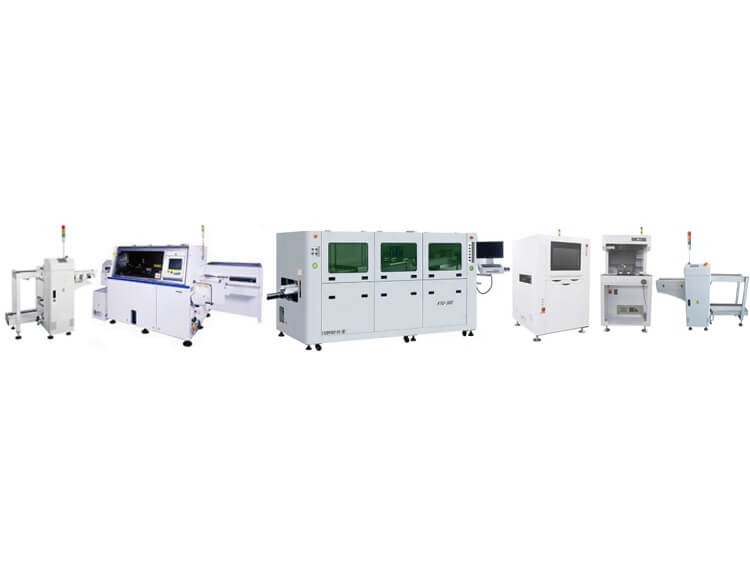

Panasonic AV131 Insertion Production Line

Specifications:



Full Automatic Panasonic AV131 Insertion Production Line, The whole Production line including PCB loader,Panasonic AV131 inserter, Wave Soldering Machine, DIP PCB AOI, Touch UP machine, PCB Unloader, High Speed Insertion Line, Full Automatic Production, Automatic Touch UP Mahcine, PCB Unloader.

1. PCB Loader


Micro computer controlled component ensures machine’s stable and reliable running.

Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.

Multiple sound and light alarming functions

Use standard magazines, good compatibility, load with 3 magazines at one time.

Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)

Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic

Optional SMEMA port for communication between machines.

2. Panasonic Axial Inserter AV131


1. Achieve the highest productivity in the industry.

● Insertion speed 0.12 sec / point

● Lightweight and high rigidity of the XY table for high speed

2. Increase the actual production speed by eliminating the factor of speed loss.

● The size and weight of the insertion device and the direct drive method enable high speed when the insertion device rotates.

3. For example, compared with 15 years ago, the insertion speed is increased by about 4 times, and the productivity improvement per unit area productivity is about 5.3 times.

PCB dimensions: L50mm x W50 mm to L508mm x W381mm

3. Wave Soldering Machine KTU 350


Wave sodlering machine is used for soldering THT insertion components to PCB. It's automatic soldering, so reduced the human working cost. Nowsdays still widely used in PCB production feild.

1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

2.Automatic power system, frequency converter control, automatic board input system.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,

easy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independeninfrared heating (IR heating) control.

9.Time can be controlledwe can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records, improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

4. DIP Inline AOI Inspection Machine D520


Clear Vision Capturing System

Worlds top-class high performance

Inspection speed = 0.2 sec/ frame

Easy programming

CCC ( Central Confirmation Control)

SPC ( Statistical Process Control)

5. Inline DIP Touch UP Machine R820


Through the equipment interconnection, the touch-up station received the defective location data from AOI, and pointing the rework position accordingly:

Intelligent identification of bad points, without manual search, greatly reduce the intensity of human work, saving m 70% of the labor costs;

Eliminate artificial visual errors, greatly improve the quality of products;

Comprehensive and detailed SPC analysis system, greatly promoted the improvement of the former process technology;

Change the traditional mode of operation, greatly enhance the production efficiency.

6. SMT PCB magazine Unloader UNL330


Special Aluminum alloy guide rails and rubber belt

Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

Pneumatic PCB clamping structure

Attach one set 0.7m length pcb conveyor

Magazine size(L*W*H): (L)535*(W)460*(H)565mm

PCB max size(L*W):(L)500*(W)390mm

Direction:R-L/L-R

Adjustable Lifting distance:10,20,30,and 40mm

Keywords:

Panasonic NPM Assembly lineFull Automatic Panasonic Assembly lineHigh Speed Panasonic Assembly lineDIP Assembly linePanasonic Dual Lane Assembly linePanasonic SEMI-Automatic Production linePanasonic pick and palce machinePanasonic InserterPanasonic PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare partsPanasonic AI Spare parts.

We provide Panasonic SMT assembly line solutions, including Panasonic Assembly Line Equipments Panasonic productsPanasonic Pick and Place Machine MachinePanasonic Insertion machinePanasonic SMT Stencil PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare PartsPanasonic AI Spare Parts;  any kind through hole Insertion equipments you may need, please contact us for more information: Tommy wechat whatsapp: +8613691605420, Email: sales@flason.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/ skype/ phone/ wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
