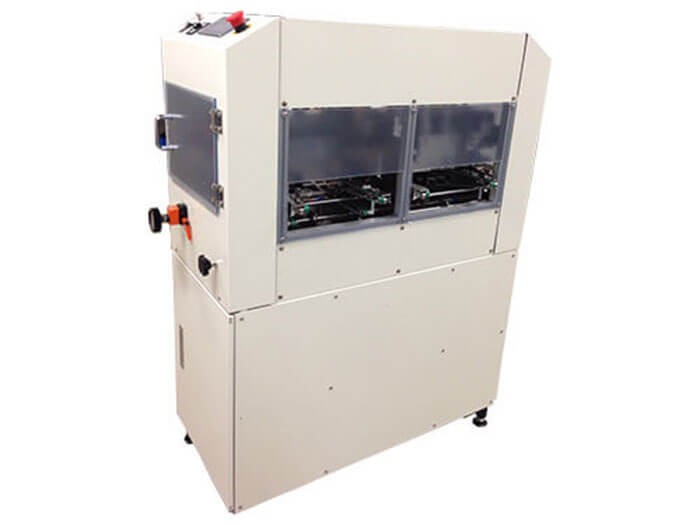

PCB Cleaner UC-250BV-W

PCB size: 330﹡250 mm
PCB thickness: 0.5~2.0 mm
Brush: 4 rolls
Weight About: 200 kg

PCB Cleaner UC-250BV-W

Specifications:


UC-250BV-W PCB surface Cleaning Machine is special designed for dual conveyor SMT lines. Each conveyor has a Bursh + Vacuum cleaning unit and each machine can be adjusted and used individually.

Machine Features
1.Specially designed for strict PCB surface clean requirement of SMT line.
2.Only for dual conveyor SMT lines.
3.Can clean PCB top side surface with components mounted on the bottom side.
4.Standard equipped Ionizer system, greatly reduce the effect of ESD.
5.No consumable parts. No need to stop SMT lines.
6.Easy Touch panel operation, Chinese, Japanese and English interface can be selected.
7.First SMT cleaning machine maker in the world, 10 years cleaner design and production experience.
8.More than 200 world famous electronic factories are using our cleaning machine on their SMT lines.
Machine Spec

Model

 PCB Cleaner

Model No.

UC-250BV-W

PCB size

5050~330250 mm

PCB thickness

0.5~2.0 mm

Conveyor height

900±25 mm

Brush

4 rolls

Vacuum Unit

2 sets

Conveyor direction

Left→Right or Right→Left

Conveyor fix side

Front side fixed or Rear side fixed

Width adjustment

Manual

Ionizer

Build-in

Air supply

0.5Mpa

Power supply

AC220V/100V, 50/60Hz,90W

Dimension

L460 x W1220 x H1265(mm)

Weight

About 200 kg

Keywords:

SMT reflow oven machineSMT wave soldering machineSMT AOI machineSMT SPI machineSMT peripheral machinePanasonic pick and palce machinePanasonic InserterPanasonic PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare partsPanasonic AI Spare parts.

We provide Panasonic SMT assembly line solutions, including Panasonic Assembly Line Equipments Panasonic productsPanasonic Pick and Place Machine MachinePanasonic Insertion machinePanasonic SMT Stencil PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare PartsPanasonic AI Spare Parts;  any kind through hole Insertion equipments you may need, please contact us for more information: Tommy wechat whatsapp: +8613691605420, Email: sales@flason.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/ skype/ phone/ wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
