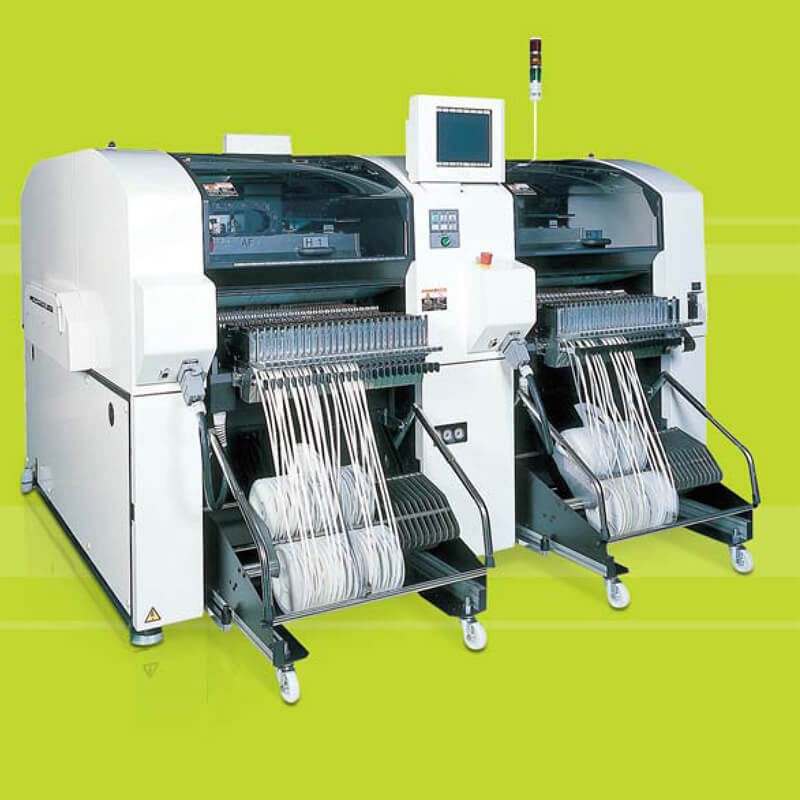

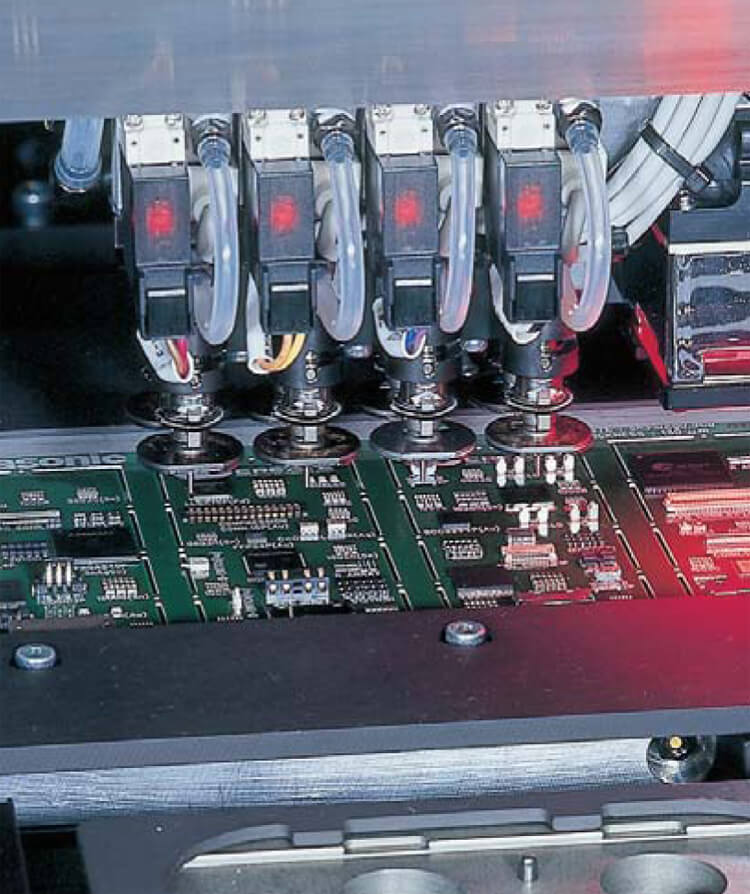

Panasonic CM402-L Pick and Place Machine

Panasonic CM402-L Pick and Place Machine
Mounting Speed: 60,000 CPH
Application components: from 0201 chips to 24mm square
Panasonic CM402

Panasonic CM402-L Pick and Place Machine

Specifications:


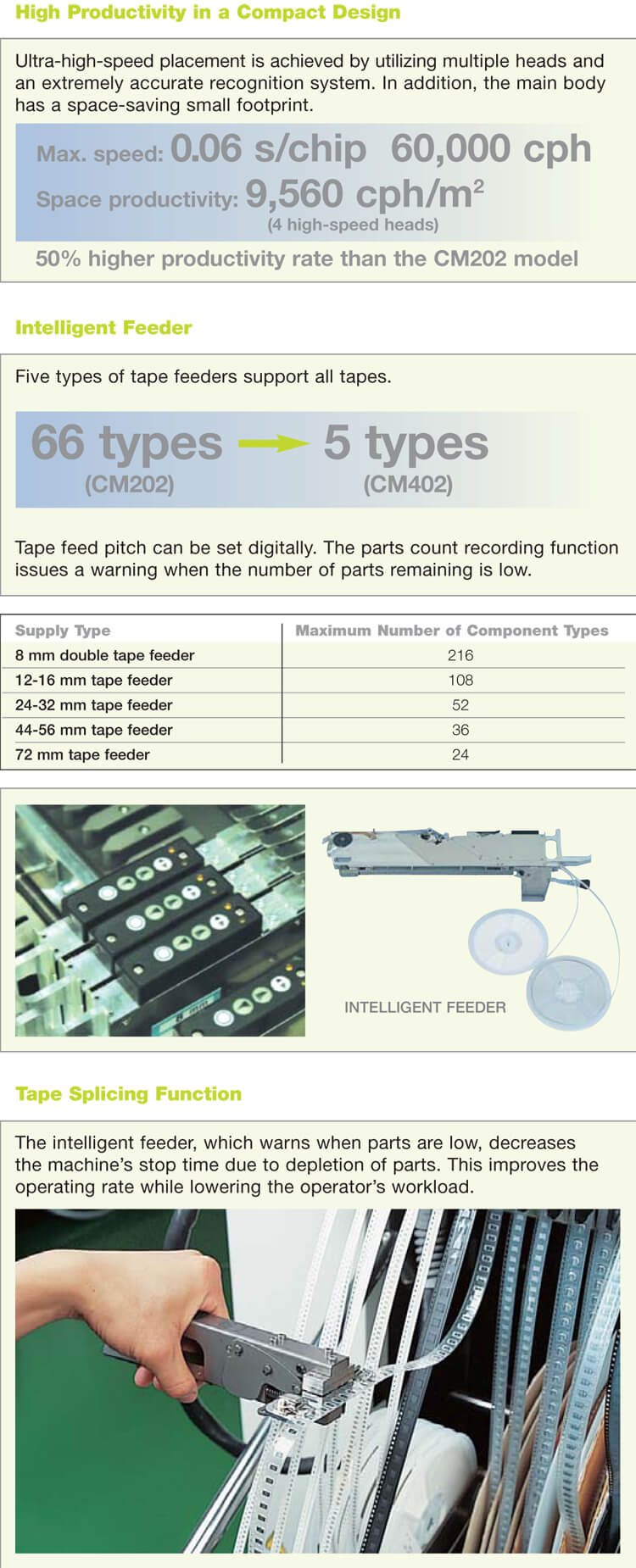

Features & Benefits

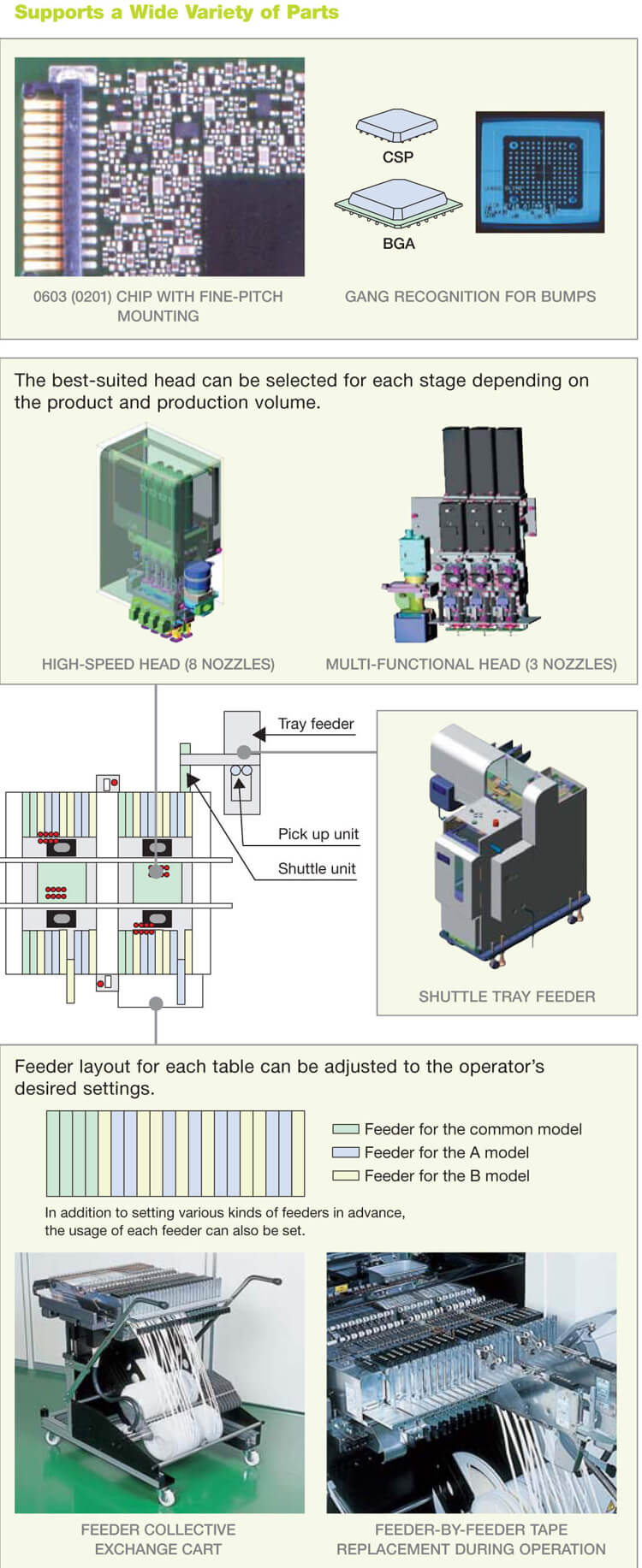

Supports wide range of chips, from 0201 chips to 24mm square components in high-speed mode and 0201 chips to 90mm X 100mm in multi-function mode
Up to 60,000 components per hour
216 feeder inputs (using 8mm dual)
Gang feeder exchange
Dual lane capability

MODEL ID:  CM402-L pick and place machine
MODEL NUMBER:  KXF-4Z4C
PCB DIMENSIONS:  L 50 mm x W 50mm to L 510 mm × W 460 mm
HEAD TYPE:  Type A-2 (12/12 nozzles HIGH-SPEED)       (OPTION)
 Number of nozzles:   12 nozzles/head
 Maximum speed:   0.052 s/chip (69,500 cph)
 Placement accuracy:   ±40um/chip
 Component dimensions:  (01005")0402 chip to L 12mm x W12mm xT6.5mm
HEAD TYPE:  8+8 HIGH-SPEED                            (OPTION)
 Number of nozzles:   8 nozzles/head
 Maximum speed:   0.06 s/chip (60,000 cph)
 Placement accuracy:   ±50um/chip
 Component dimensions:   0201 (0603) C, R to L 24 mm × W 24 mm
HEAD TYPE:   8+3 MULTI FUNCTION                        (OPTION)
 Number of nozzles:   3 nozzles/head
 Maximum speed:   0.21 s/QFP (17,140 cph)
 Placement accuracy:   ±0.035 mm/QFP
 Component dimensions:   0402 (1005) C, R to L 100 mm × W 90 mm
PCB EXCHANGE TIME:  0.9 s (board length: up to 240 mm)
ELECTRIC SOURCE:  3-phase AC 200 V ±10 V / AC 400 V ±10 V, 2.5 kVA
PNEUMATIC SOURCE:   490 kPa, 150 L/min (standard, machine body only)
DIMENSIONS  W 2,350 mm x D 2,690 mm x H 1,430 mm
MASS   3,400 kg
