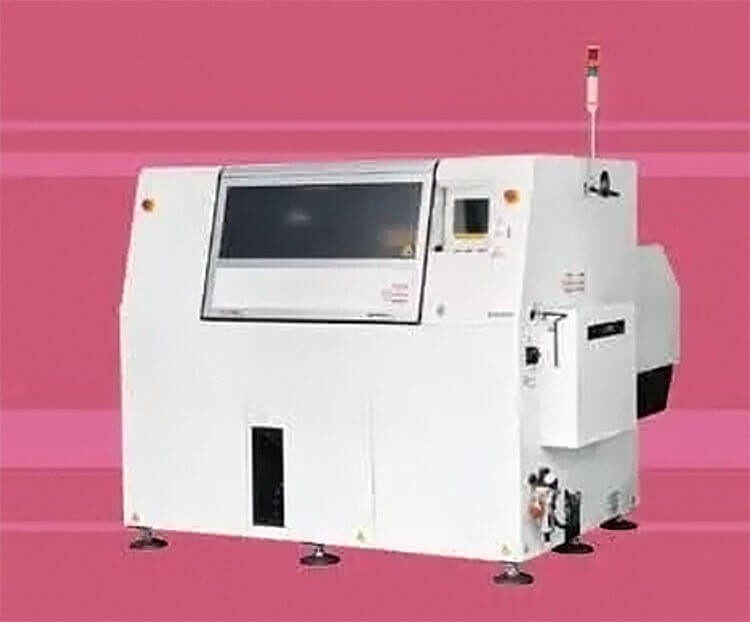

Panasonic AV132 vertical inserter

PCB dimensions (mm): MAX. L 508 x W 381
Max.speed *1: 0.12 s/component
PCB exchange time: about 2.0 s
Insertion direction: 4 directions (0 °, 90 °, 180 °, 270 °)

Panasonic AV132 vertical inserter

Specifications:


Features

Supplied with a 40 or 80 component feeder with optional jumper wire, the compact supply unit configuration of the AV132 can fit both ammo pack and reel. The dual partition configuration enables a fast changeover. The next job can be set up while the current one is being processed.

Capable of inserting components in four directions: 0°, 90°, 180°, and 270°, the AV132 optimizes productivity by simultaneously handling 26 and 52mm taped components and providing fast, full auto-recovery.

Features

The AV132 can reduce loading times by running two PCBs simultaneously, enabling efficient production due to a speed of 0.12s/component and a transfer speed of 2s/PCB.

The fixed feeder unit and the out-of-component detection feature allow to replenish components while maintaining long-term non-stop runs.

Preparation in advance or equipment operation during component change-over is possible.

Model IDPanasonic AV132 inserter
Model No.NM-EJA6ANM-EJA5A
PCB dimensions (mm)L 50 x W 50 to L 508 x W 381
Max.speed *10.12 s/component
No.of component inputs40 + 40 + JW (JW is optional)40 + JW (JW is optional)
Applicable componentsResistors1/8 W,1/6 W,1/4 W,1/2 W, Jumper wire (tin-plated wire), Diodes, Cylindrical ceramic capacitor
PCB exchange timeabout 2.0 s
Insertion direction4 directions (0 °, 90 °, 180 °, 270 °)
Electric source *23-phase AC 200 V, 3.5 kVA
Pneumatic source0.5 MPa, 200 L/min (A.N.R.)
Dimensions (mm)W 3 106 x D 2 300 x H 1 575 mm *3W 2 104 x D 2 300 x H 1 575 *3
Mass *42 648 kg2 228 kg
