Panasonic NPM-D3 SMT Assembly Line

Panasonic NPM-D3 SMT Assembly Line

Specifications:

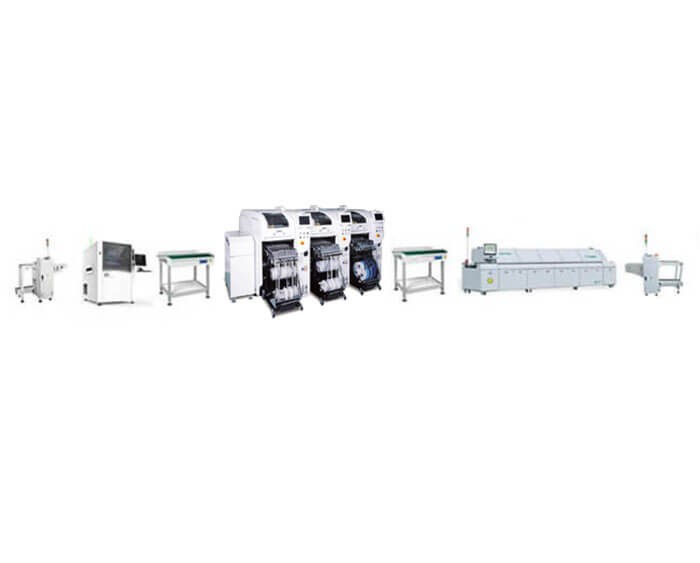

Panasonic NPM-D3 SMT production Line, this full automatic SMT assembly line with 3 set NPM-D3 pick and place machine, suitable for High output PCB production, like consumer proudcts PCB, TV PCB and other middle size PCB with daily output 20000pcs.

1. PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

2. Automatic smt stencil printer G5

G5 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.

Specification:

GKG Series High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size：50mm x 50mm ~400mm x 340mm;

PCB thickness: 0.4mm ~ 14mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,

min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,

medical power equipment, aerospace and aviation, besides general electronics products.

3. Panasonic NPM-D3 Pick and place machine

Plus new enhancements:
Compact footprint - scale production to your factory needs
Quick-change feeder carts, nozzle banks, and process heads
Compatible with CM- & AM-series intelligent feeders & nozzles
Board warp detection, Adaptive Process Control (APC), and Auto Board Support Pin
Industry's first 3D Multi Recognition Camera
Lightweight 16-nozzle head (for 84,000 CPH)
Increased placement accuracy to 25um (cpk ≥1.0)

4. high production Capacity Reflow oven KTR 1000

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

5. PCB Unloader

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box
